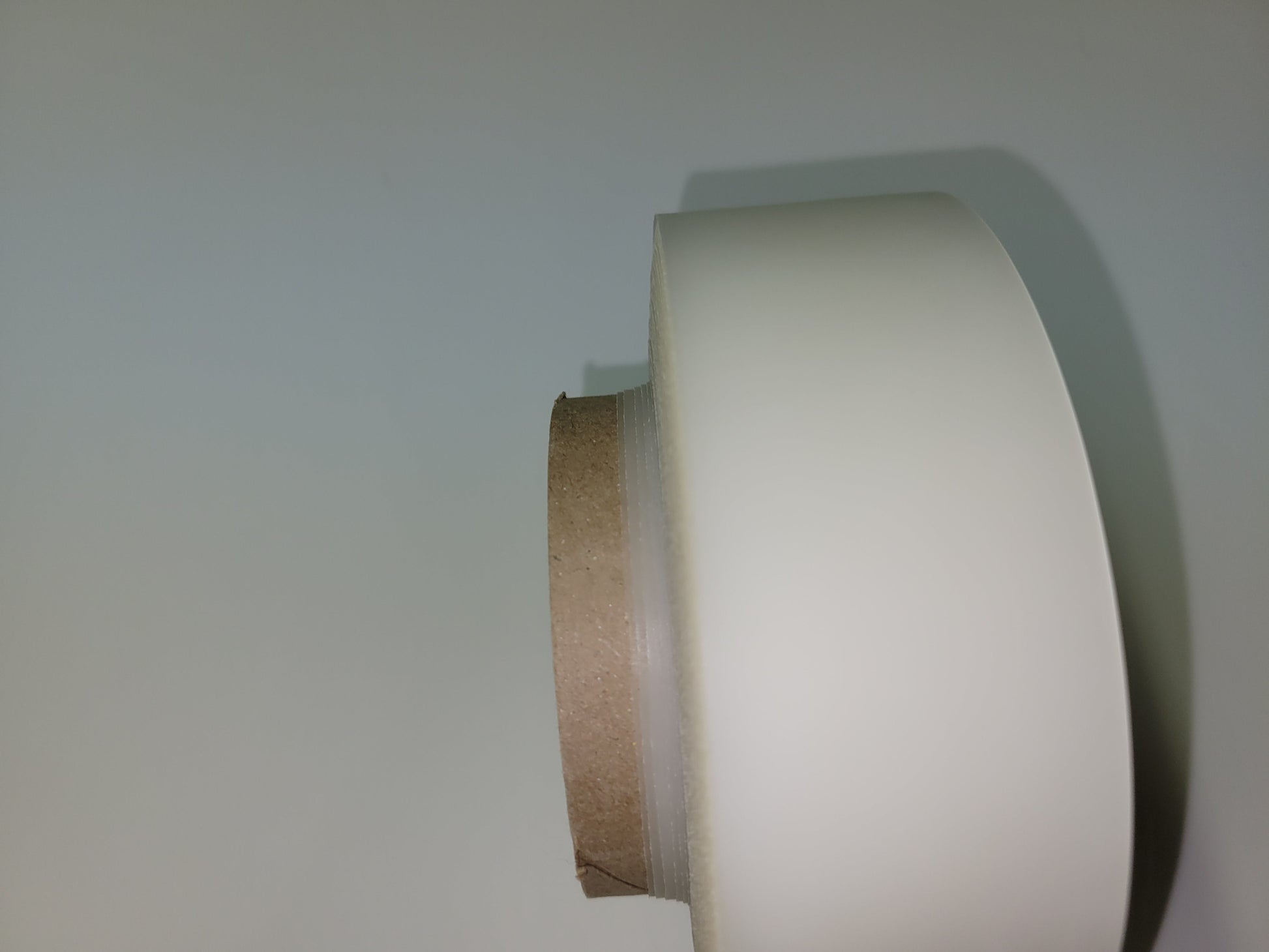

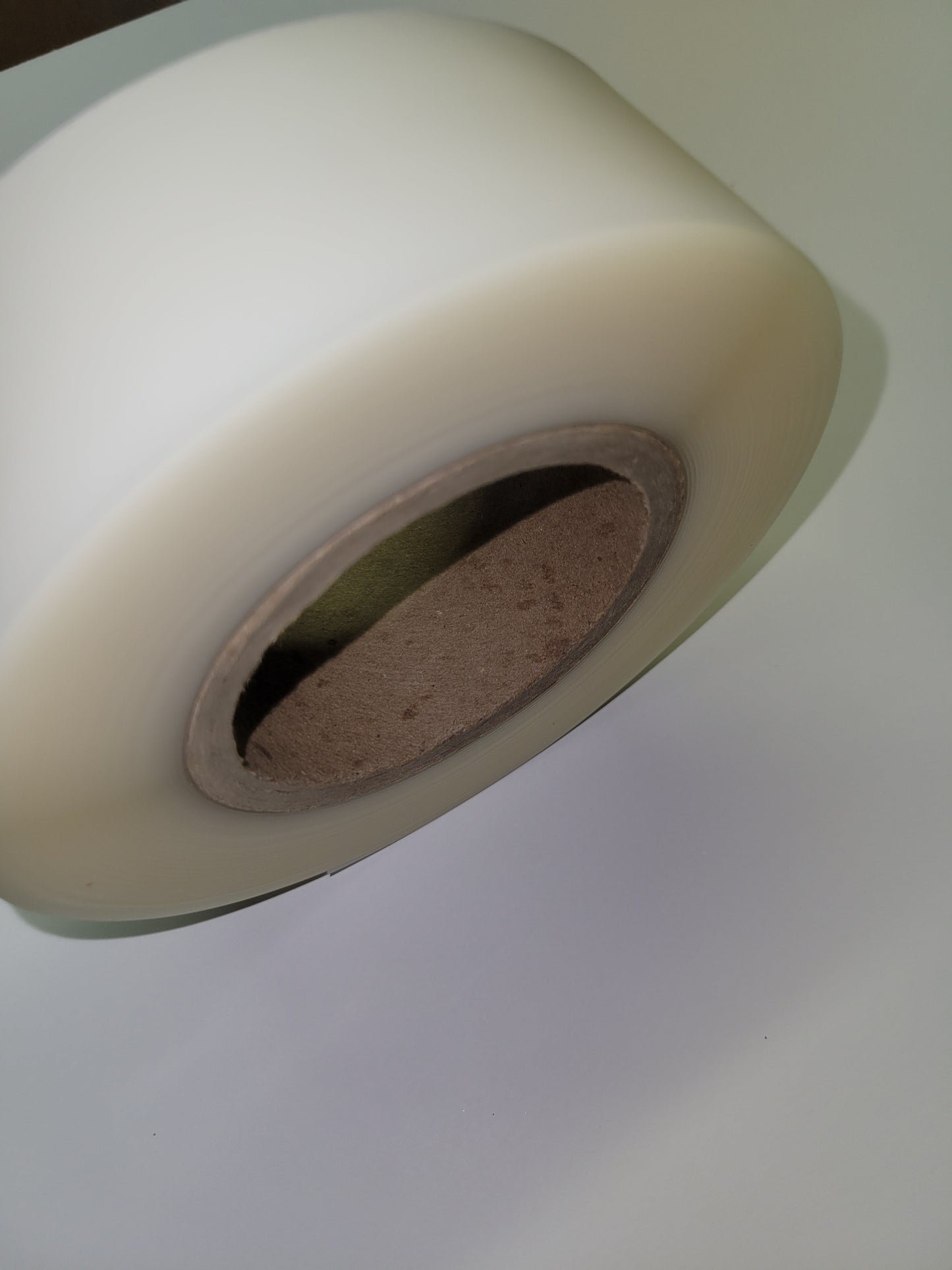

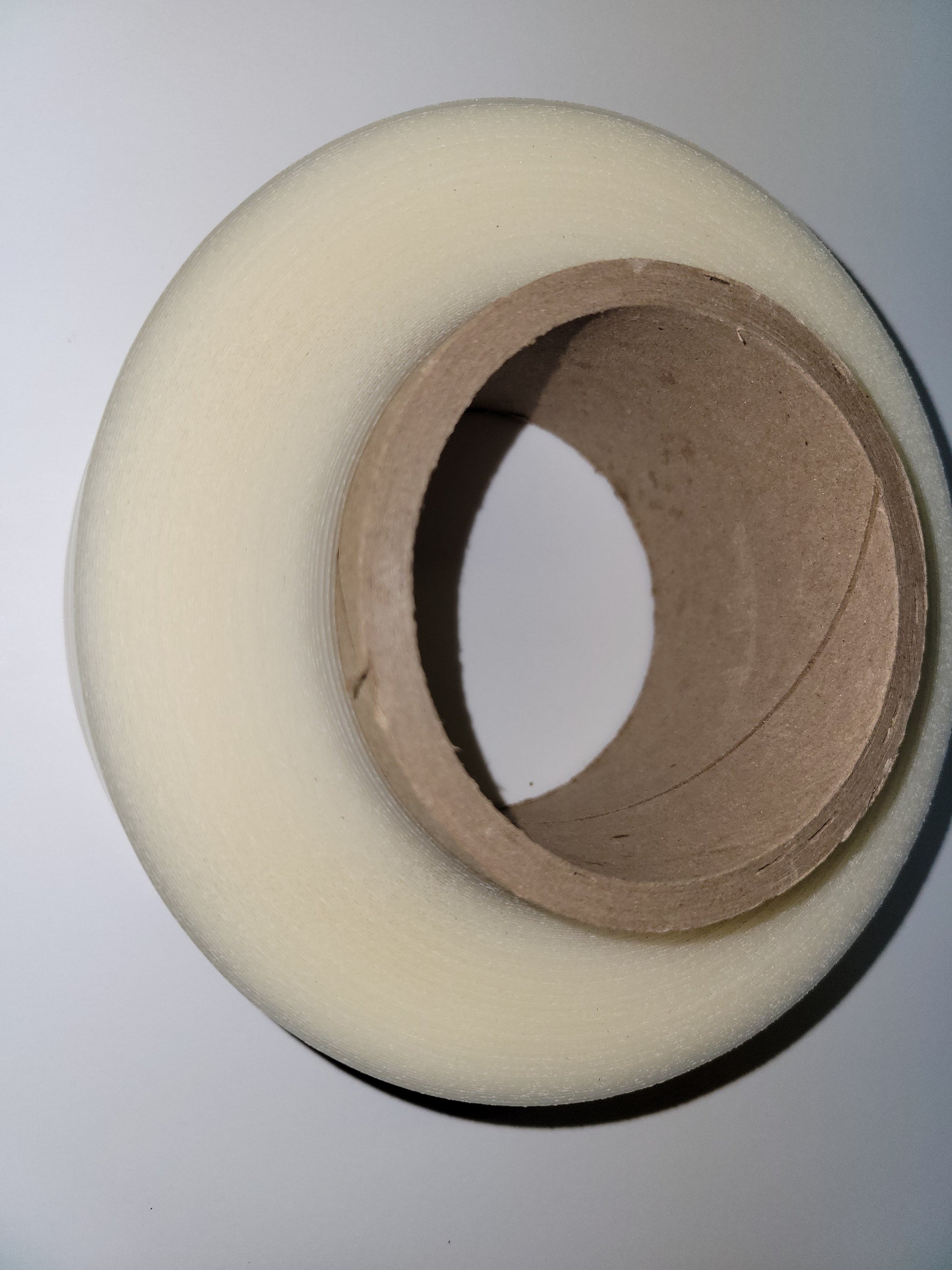

ElastoTuff® 1-3/4" x .030" x 100' Polyurethane Die Protection Film, Press Brake Die Urethane Protector, No Marking

ElastoTuff® 1-3/4" x .030" x 100' Polyurethane Die Protection Film, Press Brake Die Urethane Protector, No Marking

Regular price $47.00 USD
Regular price $76.99 USD Sale price $47.00 USD
Sale Sold out
Shipping calculated at checkout.

1-3/4" Wide

.030" Thick

100 Foot Roll

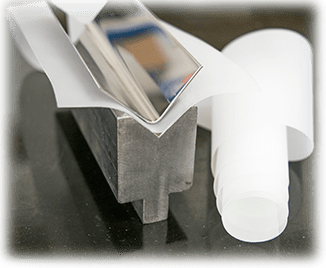

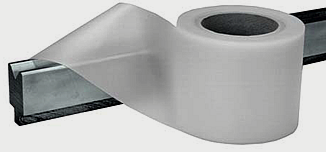

ElastoTuff® film by Poly Tech Innovations, a urethane film, prevents die marks on a wide range of materials including stainless, aluminum and other polished stocks. Manufacturing costs will be reduced significantly because secondary polishing, or having to scrap expensive blanks is eliminated. Simply cut ElastoTuff® film to length, lay it on top of the bottom die and secure one side with double-faced tape.



General Properties: Specifications Values
Durometer: D2240 85A
Specific Gravity: D792 1.20
Tensile Properties: D638
Modulus at100% strain 800 psi
Modulus at300% strain 1800 psi
Modulus at break 7000 psi
Modulus of elasticity up to 10% strain 30 psi
Elongation at break 400%
Set at break 30%
Tear Properties:
Die C D624 425pli
